HC

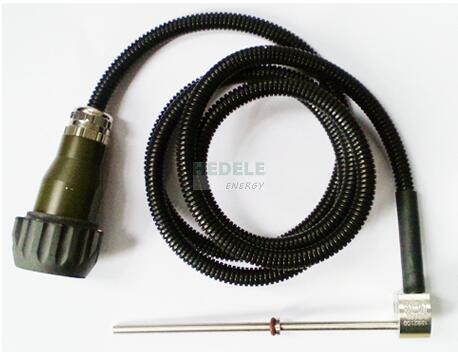

TLK-100N motor temperature sensor
delivery time: 2-3 weeks
Temperature measuring element
Platinum resistance
Graduation number
Pt100
Temperature measurement range
- 50°C ~ 250°C
Tolerance class
DIN EN 60751 (±0.12Ω/0°C) Class B
Lead way
four-wire system
measure current
1mA
Insulation resistance
≥ 200MΩ, 500VDC
Dielectric strength
Insulation withstand voltage: AC 2000V, 1min, no breakdown and flashover,
Breakdown voltage≥4000V
