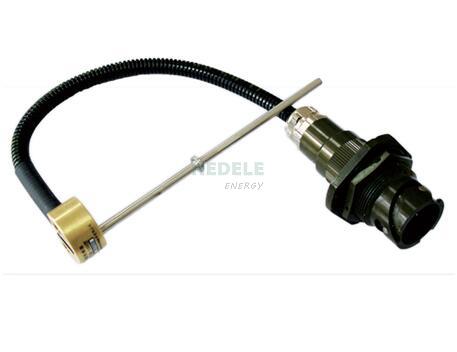

TLK-100M motor temperature sensor
delivery time: 2-3 weeks
| Temperature measuring element | Platinum resistance |
| Graduation number | Pt100 |
| Temperature measurement range | -50°C ~ 250°C |
| Tolerance class | DIN EN 60751 (±0.12Ω/0°C) Class B |
| Lead way | four-wire system |
| measure current | 1~2mA, max 10mA |
| Insulation resistance | ≥200MΩ@500VDC |
| Dielectric strength | AC500V/50Hz/60s |
