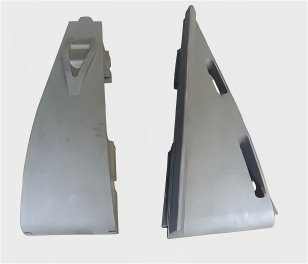

ZDX-1 portable derailleur (titanium alloy)

ZDX-1 portable derailleur (titanium alloy)
Category: Titanium alloy re rail


1. Introduction
The portable derailleur is a specialized tool that allows the wheelsets of derailed locomotives and vehicles to be reset to the steel rails along the guide bars by self or external force. It is suitable for derailment rescue of locomotives and vehicles in various complex environments. 2. Product features
It can meet the rescue needs of different road conditions, with reliable installation, easy guidance, and made of titanium alloy material. It is lightweight, easy to install and transport.
 3. Main technical performance indicators


3. Main technical performance indicators
Product Name: Portable Orbiter (Titanium Alloy)
Product model: ZDX-1
Design starting and ending axle load: 25t
Installation time: Easy to install, the entire installation process takes no more than 2 minutes
Single piece weight: main derailleur 27kg, small derailleur 29kg, guide rib 11kg
Re track distance: 340mm
Angle between guide edge and steel rail: 21
Material: Titanium alloy
Heat treatment state: hot isostatic pressing+vacuum annealing
Production process: Vacuum precision casting
